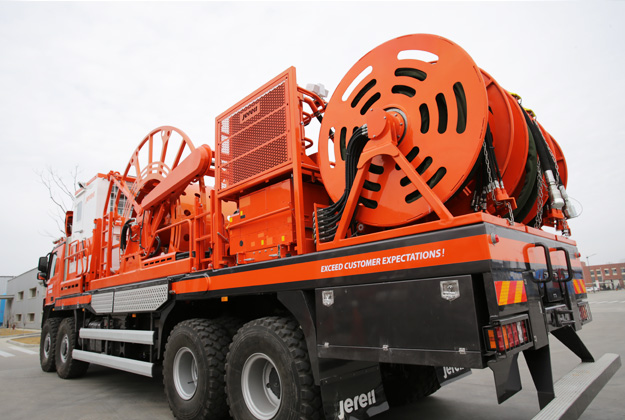

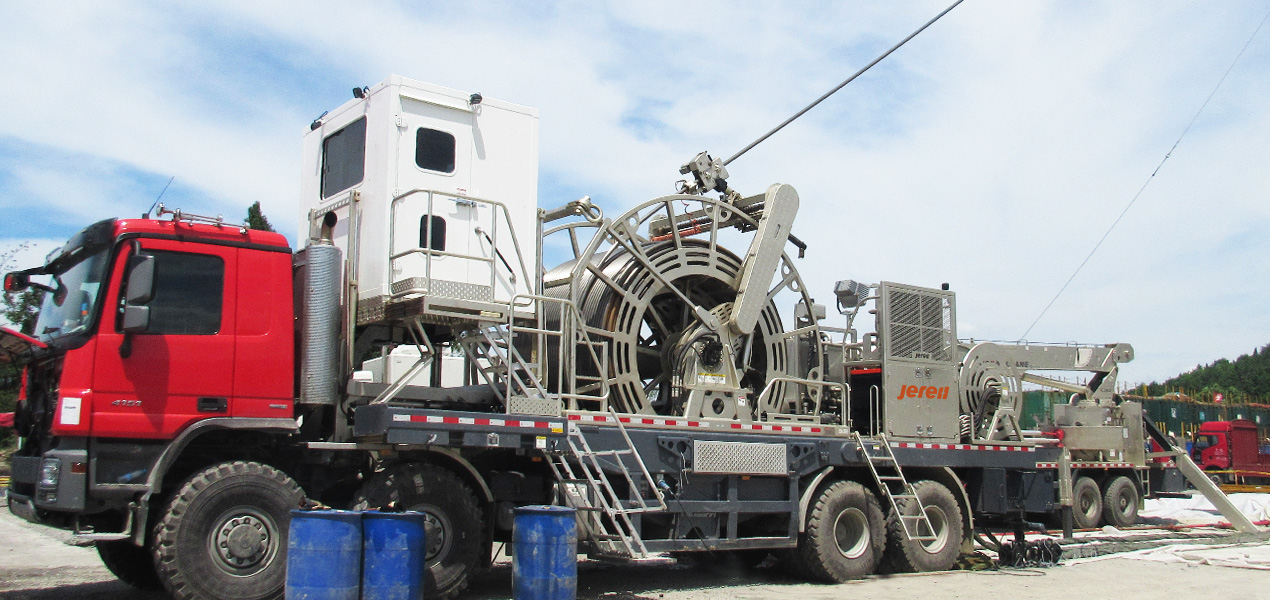

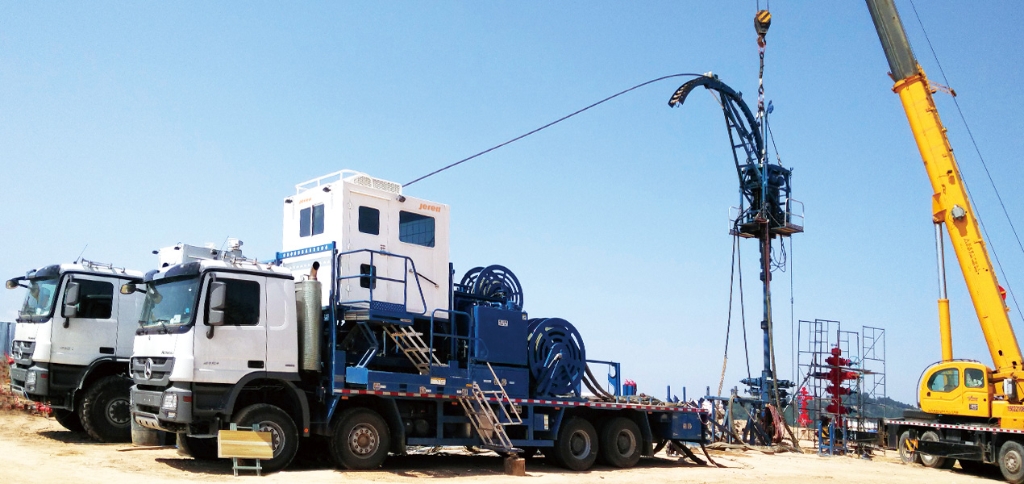

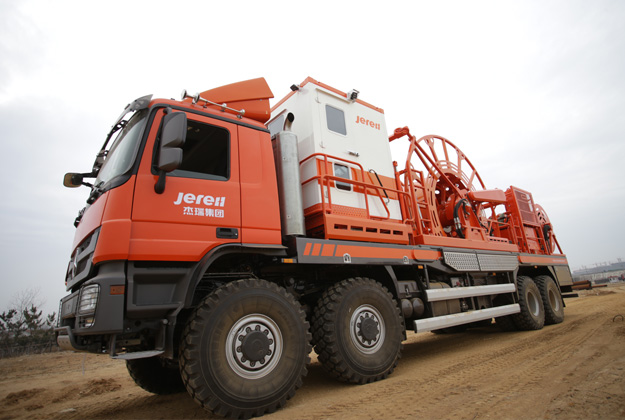

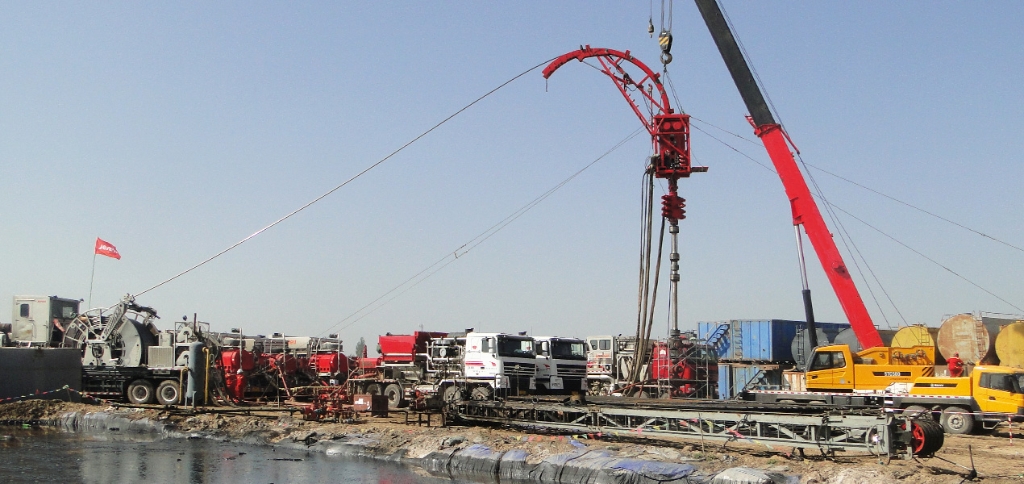

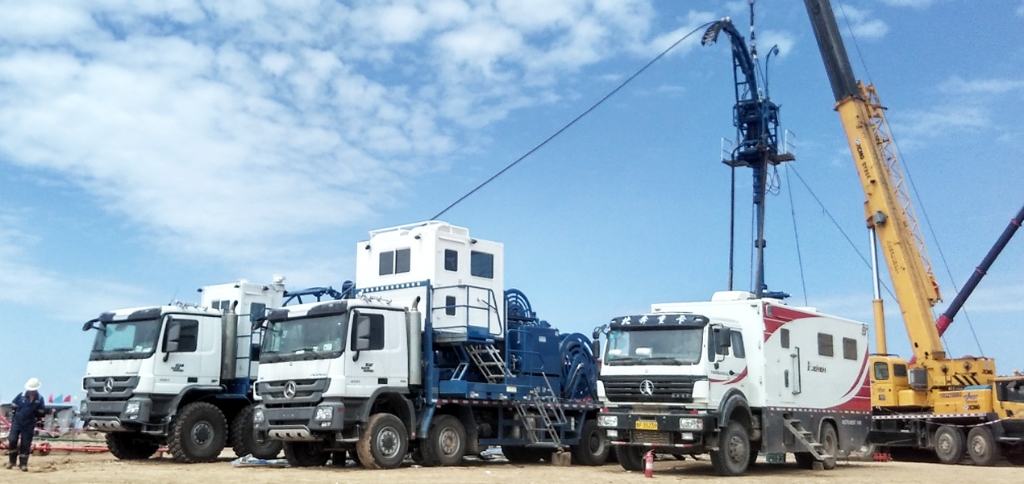

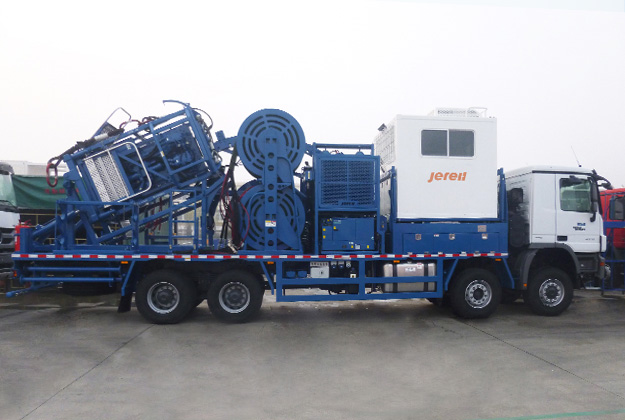

Truck Mounted Coiled Tubing Unit

Features

  • Equipment mounted on two trucks to improve flexibility for harsh road conditions in southwest China and northwest China;

  • Main truck adopts frame beam to improve load capacity;

  • Dropped chassis frame allows reel to carry tubings of large diameter (≥2”); quick-in-drum design permits safe and convenient change of reel;

  • BOP backup system to meet the requirements in case two BOPs are needed;

  • Auxiliary truck equipped with the hydraulic tubing feed system to reduce labor on site;

  • Ports for connecting with the yard spooler and tubing blower designed extending equipment functions.

Specifications

Model  LGC450 LGC360 LGC270 LGC180
Chassis  Main Truck Mercedes-Benz / MAN / Sinotruck,
       Auxiliary Truck Mercedes-Benz / MAN / BEIBEN / Sinotruck
Power Source  Chassis Engine
Tubing Reel Model  LGGT 148-78-86 LGGT 148-78-86 LGGT 120-72-78 LGGT 110-72-78
Tubing Reel Capacity

2"-21,650 ft
  (1 3/4"-28,990 ft)
2"-6,600 m
(1 3/4"-8,800 m)

2"-21,650 ft

(1 3/4"-28,990 ft)
2"-6,600 m

(1 3/4"-8,800 m)

1 1/2"-20,670 ft
(1 3/4"-14,100 ft)

1 1/2"-6,300 m
 (1 3/4"-4,300 m)

1 1/4"-22,000 ft
 (1 1/2"-14,440 ft)
1 1/4"-6,700 m
(1 1/2"-4,400 m)

Injector Model  ZRT-100K ZRT-80K ZRT-60K ZRT-40K
Continuous Pulling Capacity  100,000 lb (45,000 kg) 80,000 lb (36,000 kg) 60,000 lb (27,000 kg) 40,000 lb (18,000 kg)
Continuous Snubbing Capacity  50,000 lb (22,500 kg) 40,000 lb (18,000 kg) 30,000 lb (13,600 kg) 20,000 lb (9,000 kg)
Well Control Equipment 3 1/16" / 4 1/16" / 5 1/8"
Max. Working Pressure  10,000 psi (69 MPa) /15,000 psi (103.5 MPa)
Crane (Optional) 18 t
