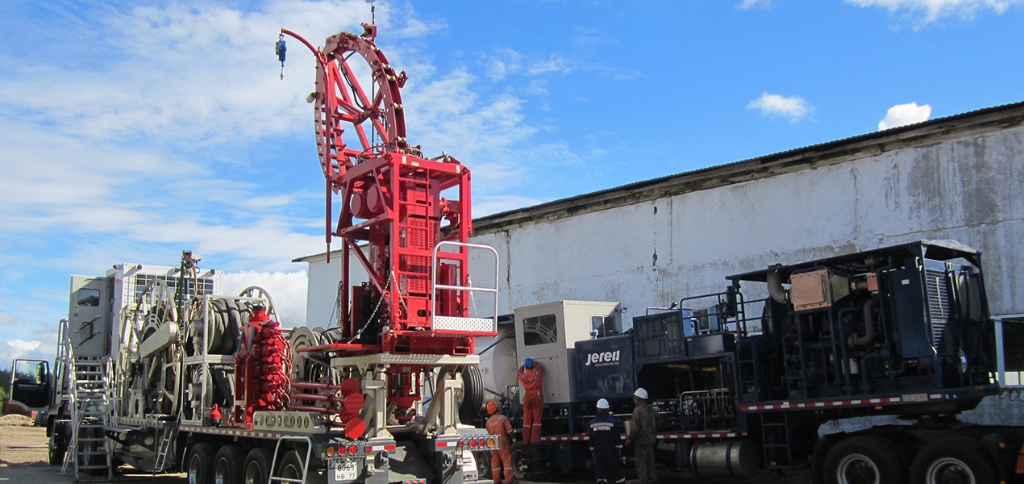

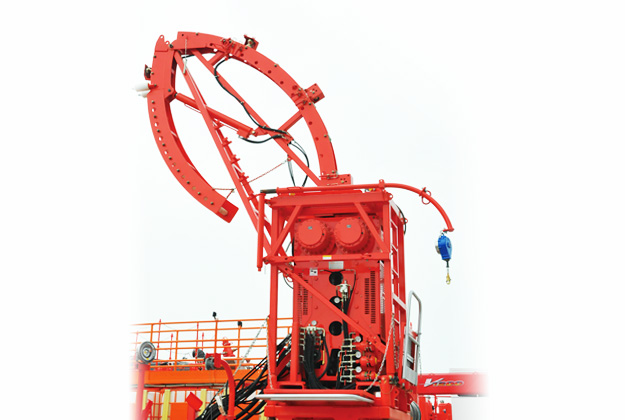

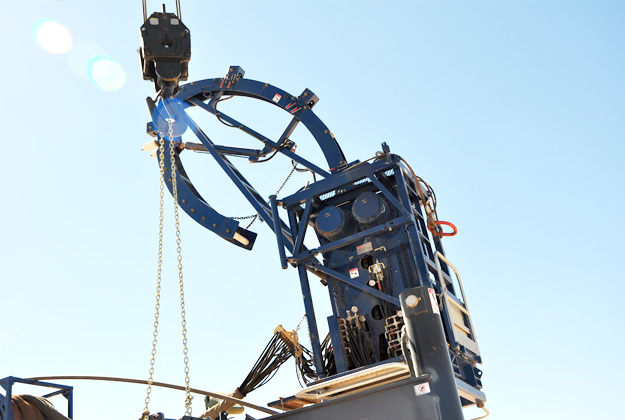

Coiled Tubing Injector

Features

  • 10K~200K injectors satisfy diversified customer requirements;

  • Double piston motor input, stepless speed regulation, balanced output pressure to ensure stable running;

  • Automatic motor brake for safe operation;

  • International patented gripper block realizes quick removal and installation; floating engaging mechanism ensures stable gripping performance.

Specifications

Model ZRT-10K ZRT-20K ZRT-40K ZRT-60K ZRT-80K ZRT-100K ZRT-120K ZRT-140K ZRT-160K ZRT-200K
Intermittent
Pulling Capacity
/ / 23,000 kg 32,000 kg 40,000 kg 50,000 kg 59,000kg 67,000 kg 77,500 kg 95,000 kg
50,000 lb 70,000 lb 90,000 lb 110,000 lb 130,000 lb 150,000 lb 171,000 lb 210,000 lb
Continuous
Pulling Capacity
4,500 kg 9,000 kg 18,000 kg 27,000 kg 36,000 kg 45,000 kg 54,400 kg 63,500 kg 72,500 kg 90,000 kg
10,000 lb 20,000 lb 40,000 lb 60,000 lb 80,000 lb 100,000 lb 120,000 lb 140,000 lb 160,000 lb 200,000 lb
Continuous
Snubbing Capacity
/ 4,500 kg 9,000 kg 13,600 kg 18,000 kg 22,600 kg 27,000 kg 27,000 kg 27,000 kg 27,000 kg
10,000 lb 20,000 lb 30,000 lb 40,000 lb 50,000 lb 60,000 lb 60,000 lb 60,000 lb 60,000 lb
Max. Speed
@ Min. Displacement
/ / 67 m/min 62 m/min 58 m/min 52 m/min 48 m/min 42.5 m/min 39.5 m/min 33.5 m/min
220 ft/min 205 ft/min 190 ft/min 170 ft/min 158 ft/min 140 ft/min 130 ft/min 110 ft/min
Max. Speed
@ Max. Displacement
39.6 m/min 54 .5 m/min 23 m/min 23 m/min 23 m/min 17.5 m/min 17.5 m/min 17.5 m/min 15 m/min 12 m/min
130 ft/min 179 ft/min 75 ft/min 75 ft/min 75 ft/min 58 ft/min 58 ft/min 58 ft/min 50 ft/min 40 ft/min
Tubing Size 1/2"~3/4" 3/4"~1 1/2" 1"~2 3/8" 1"~2 3/8" 1 1/4"~3 1/2" 1 1/2"~3 1/2" 1 1/2"~3 1/2" 2"~4 1/2" 2"~4 1/2" 2"~4 1/2"
Ultra-low Speed Control 0.5m/min 0.5m/min 0.2m/min 0.2m/min 0.06m/min 0.06m/min 0.06m/min 0.02m/min 0.02m/min 0.02m/min
19.3 in/min 19.3 in/min 7.9 in/min 7.9 in/min 2.3 in/min 2.3 in/min 2.3 in/min 0.8 in/min 0.8 in/min 0.8 in/min
Weight (without gooseneck) 1,100 kg 2,300 kg 2,650 kg 3,950 kg 4,850 kg 4,900 kg 6,500 kg 7,300 kg 7,500 kg 8,000 kg
2,425 lb 5,070 lb 5,850 lb 8,700 lb 10,690 lb 10,800 lb 14,300 lb
16,090 lb 16,530 lb 17,600 lb
