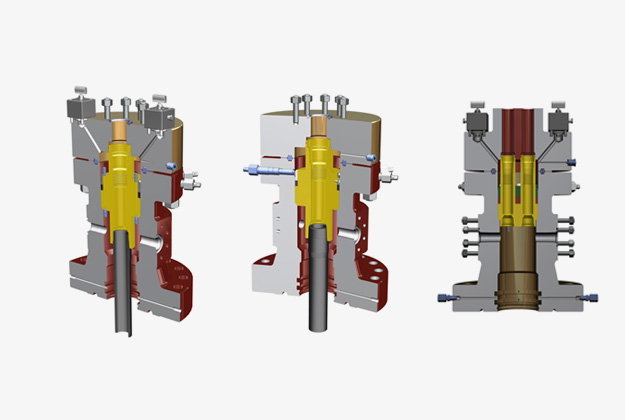

Tubing Head Spool, Hanger

Description

Jereh casing heads, tubing heads, hangers, secondary seals and accessories are suitable for different casing procedures of various sizes, used to control well pressure and adjust oil/gas well flow, applicable for severe conditions such as high pressure and high H2S. Jereh also offers custom design to meet different customer needs.

Features

  • In compliance with API 6A and NACE MR0175

  • Suitable for high pressure and severe conditions

  • Hang-off casing layers and seal-off annular space

  • Sustain the weight of wellhead equipment, tubing heads, Christmas trees or well control equipment such as BOP

Specifications

Tubing Hanger Type Method to Set Seal Main Seal Method of Extended Neck Seal Back Pressure Valve Control Line Max. Pressure Tubing Size
JHT-2 Tubing Hangers Mandrel Latch of Lock Screws Rectangle Seal S Seal Standard H Type Optional 10,000 psi 2 3/8, 2 7/8, 3 1/2, 4 1/2
JCXS Tubing Hangers Mandrel Latch of Lock Screws Rectangle Seal S Seal Standard H Type Optional 15,000 psi 2 3/8,2 7/8, 3 1/2, 4 1/2
JMTBS, JMTBS-CL Tubing Hangers Mandrel Latch of Lock Screws Rectangle Seal MS Seal Standard H Type Optional 20,000 psi 2 3/8, 2 7/8, 3 1/2, 4 1/2
JT, JT-CL, JT-SRL-CL Tubing Hangers Mandrel Latch of Lock Screws Rectangle Seal Metal-metal Seal Standard H Type Optional 15,000 psi 2 3/8, 2 7/8, 3 1/2, 4 1/2
JCD-T, JCD-T-CL Dual Tubing Hangers Mandrel Latch of Lock Screws Rectangle Seal MS Seal Standard H Type Optional 15,000 psi 2 3/8, 2 7/8, 3 1/2
ESP Tubing Hangers Mandrel Latch of Lock Screws & Pipe String Load Rectangle Seal S Seal Standard H Type Optional 5,000 psi 2 7/8, 3 1/2, 4 1/2
