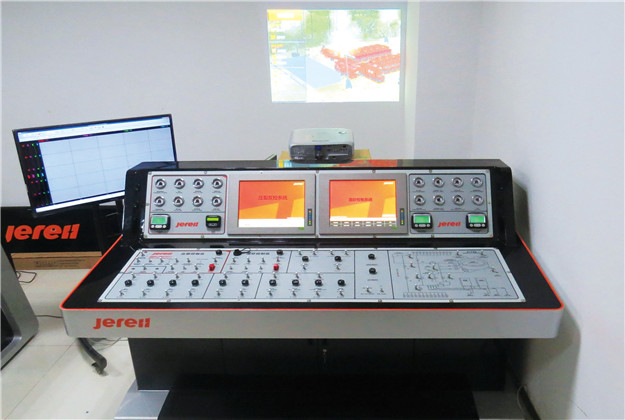

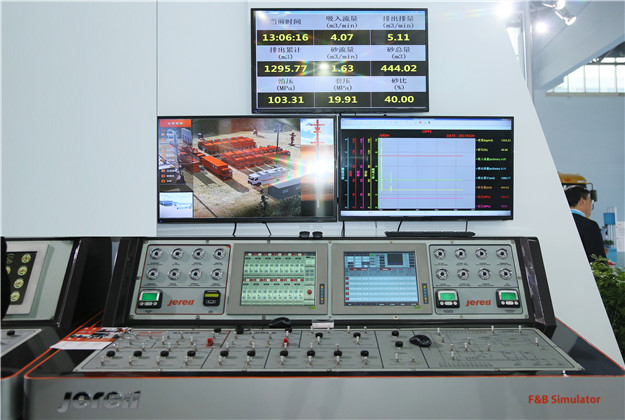

Jereh fracturing unit & sand blender simulation system is self-developed based on the real job conditions. The simulator features online and single-unit operation simulation and dynamically displays the running situations of frac spread and key parts to help the operator deal with different operations.
3D scenes and human interactive interfaces, equipment arrangement on site to be displayed though animation;
Designed with realistic sounds and real-time voice prompt;
Digital and gauge readout to monitor in real time;
User-friendly interface, software of reliable performance eliminates the possibility of system fault caused by misoperation;
System incorporates common job failures, alarm and operation instructions to help operators command frac operation and work process.
Patented mathematical models perform simulation and calculation based on job design and actual working conditions;
Industrial PLC ensures stable system operation and high reliability.
High Fidelity: The simulator designed with data model based on real job parameters with realistic sounds and real-time voice prompt to display the equipment structure, action and running status of various fluid medium providing the operator unique experience;
Safe & Economical: Operators are allowed for repeated practice without risking hazards or equipment damage in case real equipment is used;
Intelligent & Reliable: The simulator adopts industrial PLC and is designed with malfunction analysis, alarm and prompt function which help the operator react to the various failures rapidly.
The fracturing unit & sand blender simulation system is capable of performing the following simulations:
Conventional fracturing operation of vertical well
Separate layer fracturing operation of vertical well
Ball-drop fracturing operation of vertical well
Abrasive jet fracturing operation of horizontal well
Stage fracturing operation of horizontal well
Staged multi-cluster fracturing operation of horizontal well
Equipment installation and removal operation
(Ports for development of more customized simulations reserved)
|Working Voltage||220V 50Hz AC|
|Display Resolution||Single Screen/ Multiple Screens 1,920×1,080, 5,400×1,920, 3,840×1,080|
|Non-failure Operation Time||≥10,000 hours|
|Overall Dimensions||2,100×1,130×1,325 mm
