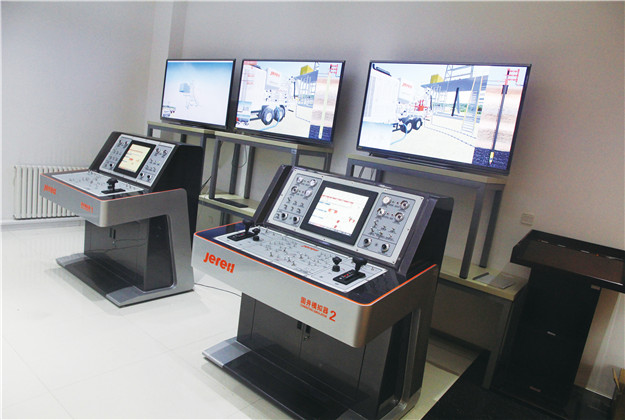

Jereh cementing unit simulation training system is self-developed based on real job conditions. This simulator provides a real-life operational environment through use of three dimensional virtual technology to help the operator learn and grasp the operating skills quickly. It is applicable to training of equipment operation and job design for onshore and offshore cementing operation. It is a simulation training platform developed by combining bus communication, distributed control and virtual technology based on the site layout.
3D scenes and human interactive interfaces, equipment arrangement on site to be displayed though animation;
Designed with realistic sounds and real-time voice prompt;
Digital and gauge readout to monitor in real time;
User-friendly interface, software of reliable performance eliminates the possibility of system fault caused by mis-operation;
System incorporates common job failures, alarm and operation instructions to help operators command cementing operation and work process;
Patented mathematical models perform simulation and calculation based on job design and actual working conditions;
Industrial PLC ensures stable system operation and high reliability.
High Fidelity: Self-developed data module, realistic sounds and real-time voice prompt provide a real-life operational environment;
Safe: Operators are allowed for repeated practice without risking hazards or equipment damage in case real equipment is used;
Intelligent: The simulator adopts industrial PLC and is designed with malfunction analysis function which help the operator react to the various failures rapidly;
Multi-functional: The simulator enables the maintenance and extension of software and hardware to achieve multi-purpose on one machine. A simulation training system can simulate different operation conditions.
The cementing unit simulation system is capable of performing the following simulations:
Pump preflushes and spacers
Drop bottom plug
Pump lead and tail slurry
Drop top plug
(Ports for development of more customized simulations reserved)
|Working Voltage||220V 50Hz AC|
|Display Resolution||Single Screen/ Multiple Screens 1,920×1,080, 5,400×1,920, 3,840×1,080|
|Non-failure Operation Time||≥10,000 hours|
|Overall Dimensions||1,300×1,130×1,325 mm|
