JR5000QP Plunger Pump

Description

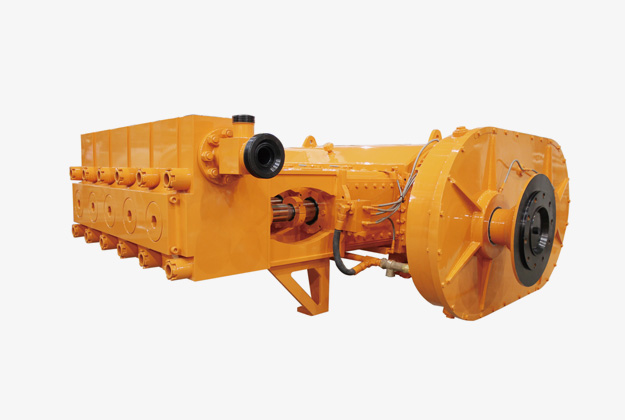

5000QP is the world’s largest horsepower quintuplex plunger pump, successfully applied on Jereh Apollo Frac Pumper. Its horsepower is equal to that of two sets 2500 pumps. High pressure and large displacement make it require less equipment and footprint on the field, reducing development cost. 5000QP is suitable for continuous operations, leading shale gas development.

Specifications

Rated Brake Horsepower: 5,000 hp Gear Ratio: 5.642:1
Maximum Rod Load: 251,327 lbf Overall Dimension: 95.98×109.29×44.13 in
Stroke Length: 10″ Weight: 23,148 lb



Plunger Dia. Disp. GALLONS PER MINUTE (GPM) AT PUMP REVOLUTIONS PER    MINUTE (RPM)

In.

(mm)

Gal/Rev
(l/rev)
63 94 122 187 251 346
GPM
(LPM)
PSI
(Mpa)
GPM
(LPM)
PSI
(Mpa)
GPM
(LPM)
PSI
(Mpa)
GPM
(LPM)
PSI
(Mpa)
GPM
(LPM)
PSI
(Mpa)
GPM
(LPM)
PSI
 (Mpa)
4
(101.6)
2.72
(10.3)
171
(648.7)
20000
(137.9)
256
(967.9)
20000
(137.9)
332
(1256.1)
20000
(137.9)
509
(1925.4)
15167
(104.6)
683
(2584.4)
11299
(77.9)
941
(3562.5)
8197
(56.5)
4.5
(114.3)
3.44
(13.0)
217
(821.0)
15802
(109.0)
324
(1224.9)
15802
(109.0)
420
(1589.8)
15802
(109.0)
644
(2436.8)
11983
(82.6)
864
(3270.8)
8928
(61.6)
1191
(4508.8)
6477
(44.7)
5
(127)
4.25
(16.1)
268
(1013.5)
12800
(88.3)
399
(1512.3)
12800
(88.3)
518
(1962.7)
12800
(88.3)
795
(3008.4)
9707
(66.9)
1067
 (4038)
7232
(49.9)
1470
(5566)
5246
(36.2)
5.5
(139.7)
5.14
(19.5 )
324
(1226)
10579
(72.9 )
483
(1830)
10579
(72.9)
627
(2375)
10579
(72.9)
961
(3640.2)
8022
(55.3)
1290
(4886)
5977
(41.2)
1779
(6735)
4336
(29.9)
6
(152.4)
6.12
(23.2 )
385
(1459.5)
8889
(61.3)
575
(2178)
8889
(61.3)
746
(2826.3)
8889
(61.3)
1144
(4332.2)
6741
(46.5 )
1536
(5815)
5022
(34.6)

2117
(8016)

3643
(25.1)
6.5
(165.1)
7.18
(27.2)
452
(1712.9 )
7574
(52.2)
675
(2555.7)
7574
(52.2)
876
(3317.0 )
7574
(52.2)
1343
(5084.3)
5744
(39.6)
1802
(6824.4)
4279
(29.5)
2485
(9407.3)
3104
(21.4)
7
(177.8)
8.33
(31.5)
525
(1986.5)
6531
(45.0)
783
(2964)
6531
(45.0 )
1016
(3847.0)
6531
(45.0)
1557
(5896.6)
4952
(34.1)
2090
(7914.6)
3690
(25.4)
2882
(10910)
2677
(18.5)
Brake Horsepower
HP/kW
2221/1656 3314/2472 4302/3208 5000/3729 5000/3729 5000/3729

Input Speed
RPM

355 530 688 1055 1416 1952
