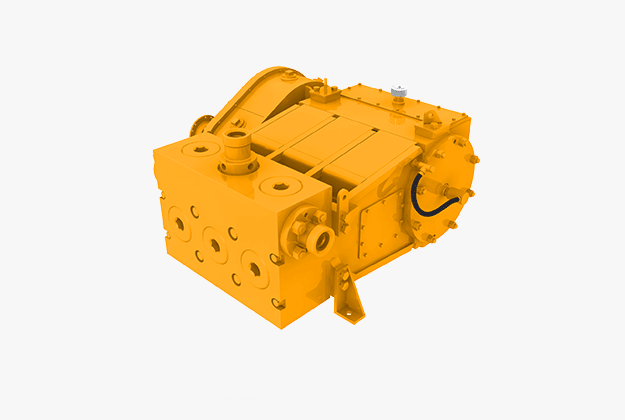

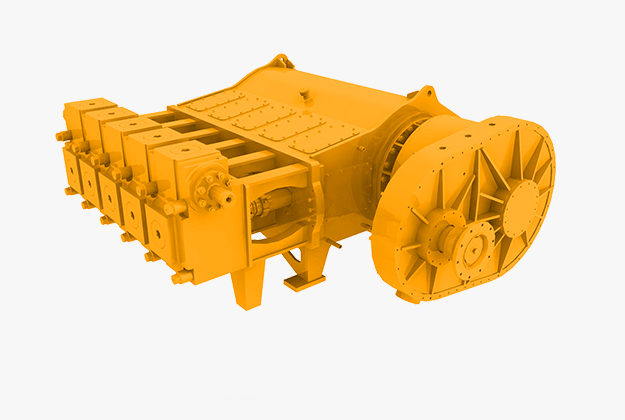

JR1000QS Plunger Pump

Description

1000QS is a quintuplex plunger pump with offset design similar to 600S in configuration, yet with higher horsepower and displacement under the same pressure. The compact structure enables twin pump layout on one equipment, making it the top choice of small-size cementing and fracturing unit. Proprietary anti-backflow deflector eliminates back flow problem.

Specifications

Rated Brake Horsepower: 1000 hp Gear Ratio: 4.6:1
Maximum Rod Load: 100,000 lbf Overall Dimension: 50.87×74.6×26.89 in
Stroke Length: 6″ Weight: 7,231 lb



Plunger Dia.  Disp. GALLONS PER MINUTE (GPM) AT PUMP REVOLUTIONS PER MINUTE (RPM)
50 100 119 200 300 450
In.
(mm)
Gal/Rev
(l/rev)
GPM
(LPM)
PSI
(MPA)
GPM
(LPM)
PSI
(MPA)
GPM
(LPM)
PSI
(MPA)
GPM
(LPM)
PSI
(MPA)
GPM
(LPM)
PSI
(MPA)
GPM
(LPM)
PSI
(MPA
2 3/4
(69.9)
0.77
(2.9)
39
(147.6)
16836
(116.1)
77
(291.5)
16836
(116.1)
92
(348.3)
16805
(115.9)
154
(583.0)
9,999
(69.0)
231
(874.4)
6,666
(46.0)
347
(1313.5)
4444
(30.6)
3
(76.2)
0.92
(3.5)
46
(174.1)
14147
(97.6)
92
(348.3)
14147
(97.6)
109
(412.6)
14121
(97.4)
184
(696.5)
8402
(57.9)
275
(1041.0)
5601
(38.6)
413
(1563.4)
3734
(25.8)
3 1/2
(88.9)
1.25
(4.7)
62
(234.7)
10394
(71.7)
125
(473.2)
10394
(71.7)
149
(564.0)
10375
(71.6)
250
(946.4)
6173
(42.6)
375
(1419.5)
4115
(28.4)
562
(2127.4)
2743
(18.9)
4
(101.6)
1.63
(6.2)
82
(309)
7958
(54.9)
163
(617.0)
7958
(54.9)
194
(734.4)
7943
(54.8)
326
(1234.0)
4726
(32.6)
490
(1854.8)
3151
(21.7)
734
(2778.5)
2100
(14.5)
4 1/2
(114.3)
2.07
(7.8)
103
(389.9)
6288
(43.4)
207
(783.6)
6288
(43.4)
246
(931.2)
6276
(43.3)
413
(1563.4)
3734
(25.8)
620
(2346.9)
2489
(17.2)
929
(3516.6)
1660
(11.4)

Brake Horsepower
HP/kW

421(313.9) 842(627.8) 1000(745.7) 1000(745.7) 1000(745.7) 1000(745.7)

Input Speed
RPM

231 461 548 922 1383 2075
