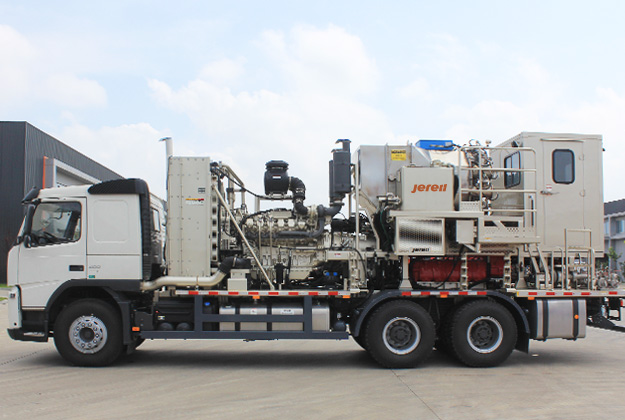

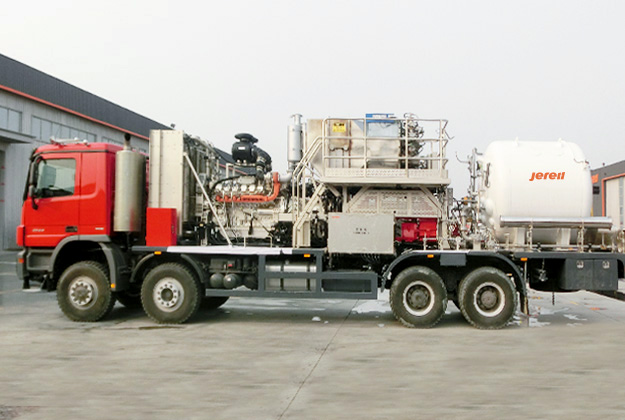

Direct Fired Nitrogen Pumper

Features

  • The vaporizer with eight independent combustors employs pilot ignition and the ignition quantity is controlled automatically, delivering high fuel efficiency;

  • One-key ignition for vaporizer, automatic burning and automatic control of the nitrogen flowrate and temperature deliver easy and intelligent operation;

  • Wide displacement and pressure ranges, stable nitrogen discharge temperature and nitrogen purity above 99.99%, suitable for different job conditions;

  • Visual interface of pumping control system delivers clear manifold operating process and easy operation.

  • Mechanical and electronic protection systems equipped on the high pressure end ensure the operator safety and reliable equipment operation.

  • LN2 filter designed on the pipeline will filtrate the impurities, extending the service life of plunger pump cold end.

Specifications

Model 400K 800K 1000K

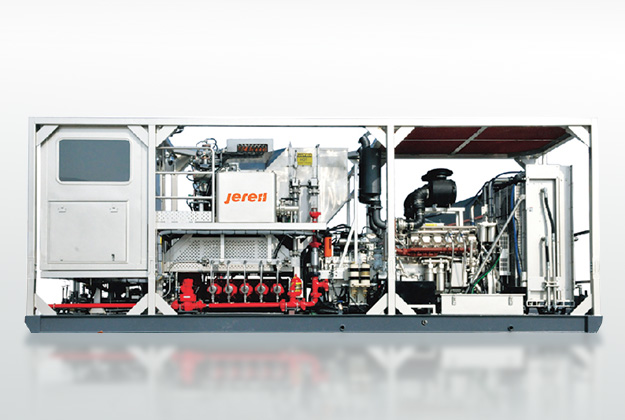

Carrier   Truck / Trailer / Skid
Chassis BENZ / MAN / VOLVO /BEIBEN
Engine DDC S60 MTU 12V2000 MTU 12V2000 / MTU 16V2000
Transmission ALLISON 4700 OFS ALLISON S8610 OFS ALLISON S8610 OFS / ALLISON S9806 OFS
LN2 Pump Triplex Plunger Pump Triplex /Quintuplex Plunger Pump Quintuplex Plunger Pump
Vaporizer 400K Direct-fired Vaporizer 800K Direct-fired Vaporizer 1000K Direct-fired Vaporizer
LN2 Tank 2,000 gal (7.5 m3) 1,000 gal (3.5 m3) 1,000 gal (3.5 m3)
Max. Working Pressure 15,000 psi (103.5 MPa) 11,600 psi (80 MPa) 15,000 psi (103.5 MPa) 11,600 psi (80 MPa) 15,000 psi (103.5 MPa)
Max. Flowrate 400K SCFH (11,300 m3/h) 645K SCFH (18,300 m3/h) 675 K SCFH (19,100 m3/h) 1000 K SCFH (28,300 m3/h) 675 K SCFH (19,100 m3/h)
Discharge Temperature 15~21 ℃(59~70℉)
Optional Control Cabin / LN2 Tank
