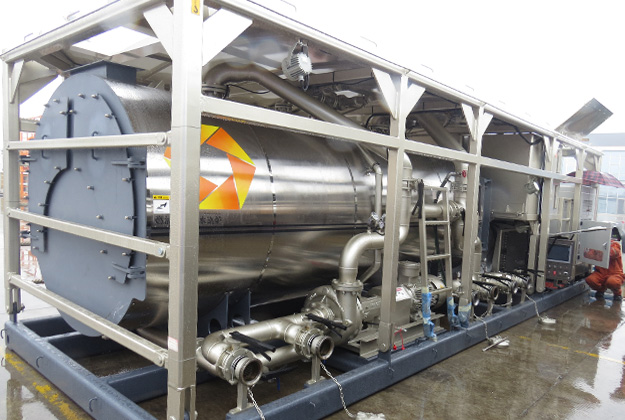

Efficient Heating Equipment

Features

  • Super heating equipment suitable for heating the fracturing fluid or other medium in arctic areas;

  • The maximized heat exchange area improves the heat exchange rate greatly to above 94%;

  • Dry burning protection and overtemperature protection ensure the safety during operation;

  • Jereh intelligent control system permits one-key setting and automatic temperature regulation.

  • Multi-function manifold allows heating of the supplied water, quick discharge and quick switch between the heated vessels.

  • Heater designed with insulation and low viscosity oil pump for arctic applications.

Specifications

Carrier Truck / Trailer / Skid
Chassis BENZ / MAN / VOLVO/ IVECO / BEIBEN
Generator  64 hp (48 kW)
Centrifugal Pump 5×4×14
Heater 4.1 MW (14 M Btu/h)
Fuel Diesel / LPG / CNG / LNG
Max. Working Pressure 43 psi (0.3 MPa)
Heating Capacity 528 gpm (2 m3/min)
Heating Medium Water
