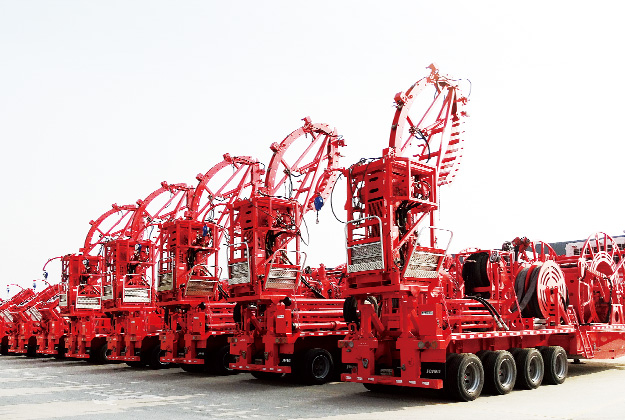

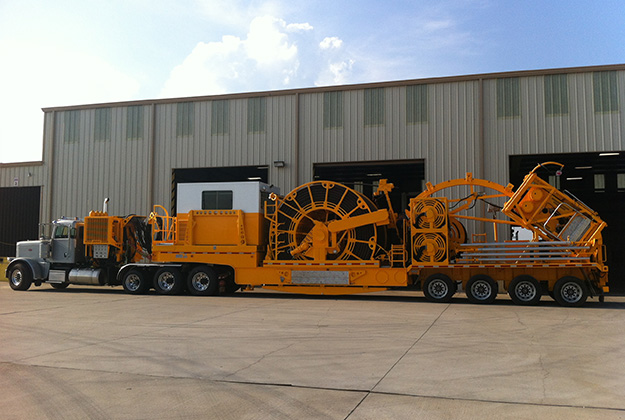

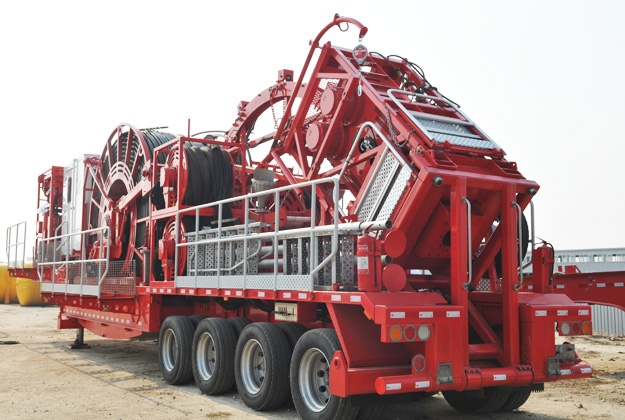

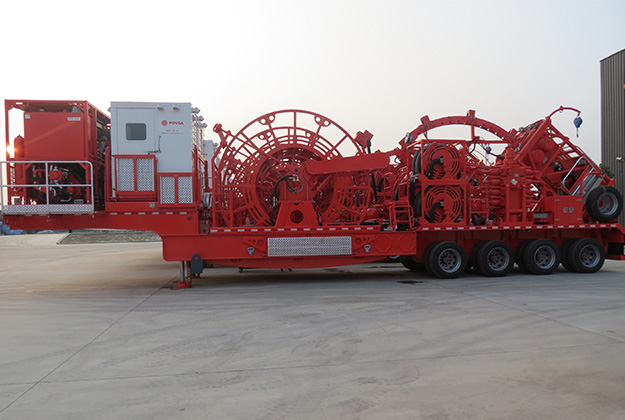

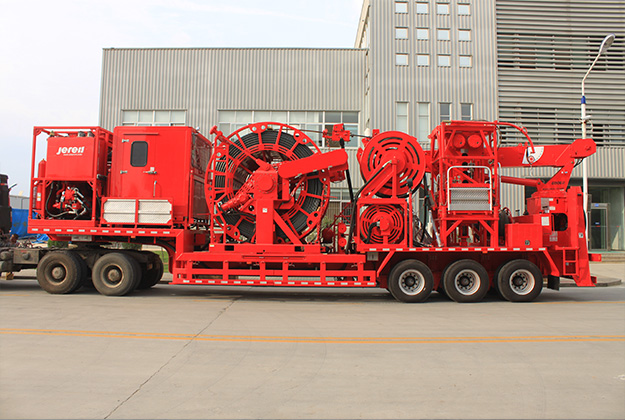

Trailer Mounted Coiled Tubing Unit

Features

  • Carrier with frame beam, double webs and reinforced structure permits higher load capacity;
  • Dropped chassis frame allows reel to carry tubings of large diameter (≥2”); quick in drum design makes reel change safe and simple;
  • BOP backup system to meet the requirements in case two BOPs are needed;
  • Ports for connecting with the yard spooler and tubing blower designed extending equipment functions;
  • Hydraulic tubes are well routed for convenient inspection and maintenance of hydraulic system.

Specifications

Model LGT630 LGT450 LGT360 LGT270 LGT180
Power Source Tractor Engine/Deck Power Pack
Tubing Reel Model LGGT 175-105-98 LGGT 150-78-78 LGGT 150-78-78 LGGT 120-72-78 LGGT 110-72-78
Tubing Reel Capacity 2.375"-20,600 ft (2.375"-6,300 m)
2.875"-14,700 ft (2.875"-4,500 m)
2"-20,600 ft (2"-6,300 m)
1.75"-26,000 ft (1.75"-7,900 m)
2"-20,600 ft (2"-6,300 m)
1.75"-26,000 ft (1.75"-7,900 m)
1.5"-20,600ft(1.5"-6,300 m)
1.75"-14,100 ft (1.75"-4,300 m)
1.25"-22,000 ft(1.25"-6,700 m)
1.5"-14,500 ft (1.5"-4,400 m)
Injector Model ZRT-140K ZRT-100K ZRT-80K ZRT-60K ZRT-40K
Continuous Pulling Capacity 140,000 lb (63,500 kg) 100,000 lb (45,000 kg) 80,000 lb (36,000 kg) 60,000 lb (27,000 kg) 40,000 lb (18,000 kg)
Continuous Snubbing Capacity 60,000 lb (27,000 kg) 50,000 lb (22,500 kg) 40,000 lb (18,000 kg) 30,000 lb (13,600 kg) 20,000 lb (9,000 kg)
Well Control Equipment 5.12" 4.06" / 5.12" 3.06" / 4.06" 3.06" 2.56" / 3.06"
Max. Working Pressure 10,000 psi (69 MPa) / 15,000 psi(103.5 MPa)
Crane (Optional) N/A 40,000 lb (18,000kg)
