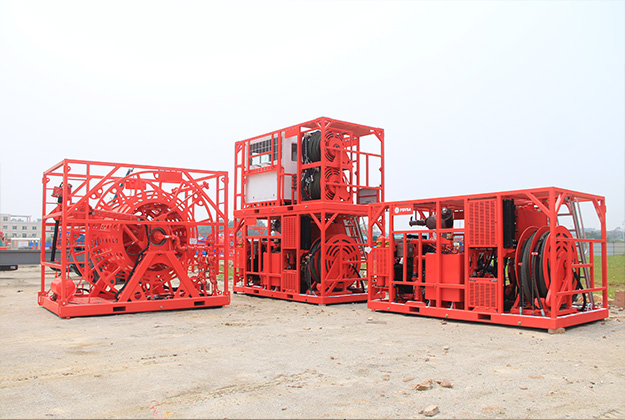

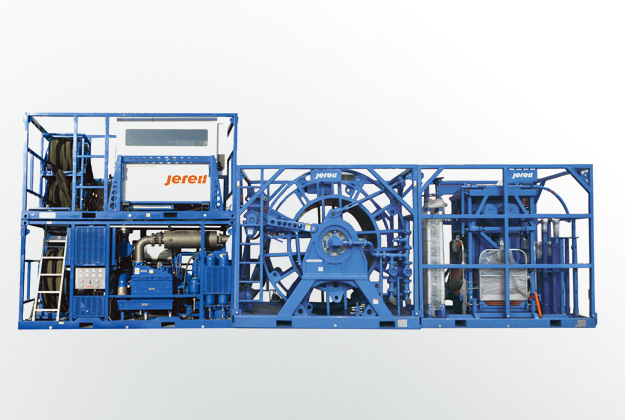

Skid Mounted Coiled Tubing Unit

Features

  • Customized design and configuration to meet offshore lifting and land transportation;
  • Quick-in-drum design suitable for small offshore platform lifting;
  • DNV, BV certification, etc. available to meet Zone II applications;
  • BOP backup system to meet customer requirements in case two BOPs are needed;
  • Skid-in-skid module more suitable for offshore applications;
  • Ports for connecting with the yard spooler and tubing blower designed extending equipment functions.

Specifications

Model LGQ630 LGQ450 LGQ360 LGQ270 LGQ180
Type Non-explosion-proof/Explosion-proof
Tubing Reel Model LGGT 168-95-70 LGGT 140-80-70 LGGT 140-80-70 LGGT 120-72-70 LGGT 110-72-70
(Quick-In-Drum) (Quick-In-Drum) (Quick-In-Drum)
Tubing Reel Capacity 2.375"-14,700 ft (2.375"-4,500 m)
2"-21,300 ft (2"-6,500 m)
2"-14,700 ft (2"-4,500 m)
1.75"-19,000 ft (1.75"-5,800 m)
2"-14,700 ft (2"-4,500 m)
1.75"-19,000 ft (1.75"-5,800 m)
1.5"-18,000 ft 1.5"-5,500 m
1.75"-12,700 ft (1.75"-3,900 m)
1.25"-19,600 ft (1.25"-6,000 m)
1.5"-12,700 ft (1.5"-3,900 m)
Injector Model ZRT-140K ZRT-100K ZRT-80K ZRT-60K ZRT-40K
Continuous Pulling Capacity 140,000 lb (63,500 kg) 100,000 lb (45,000 kg) 80,000 lb (36,000 kg) 60,000 lb (27,000 kg) 40,000 lb (18,000 kg)
Continuous Snubbing Capacity 60,000 lb (27,000 kg) 50,000 lb (22,500 kg) 40,000 lb (18,000 kg) 30,000 lb (13,600 kg) 20,000 lb (9,000 kg)
Well Control Equipment 5.12" 4.06" / 5.12" 3.06" / 4.06" 3.06" 2.56" / 3.06"
Max. Working Pressure 10,000 psi (69 MPa) / 15,000 psi (103.5 MPa)
