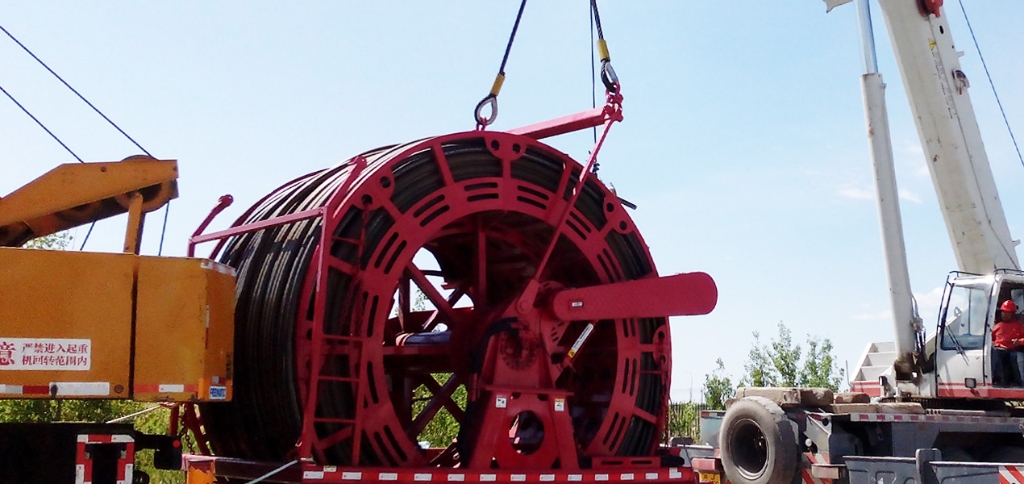

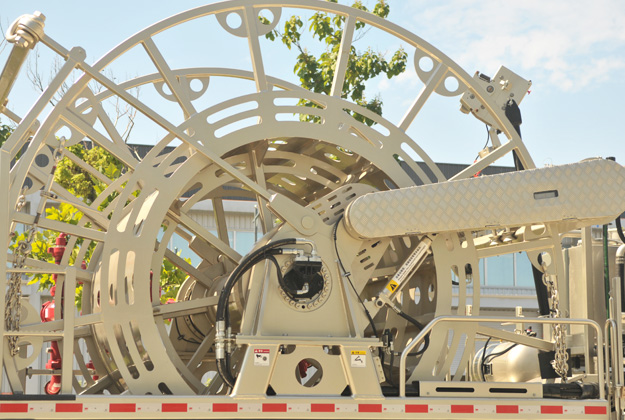

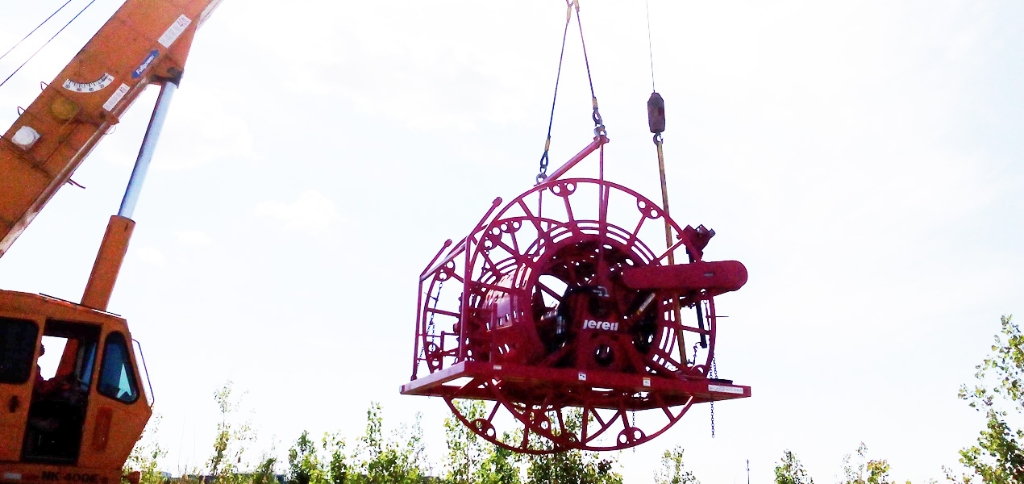

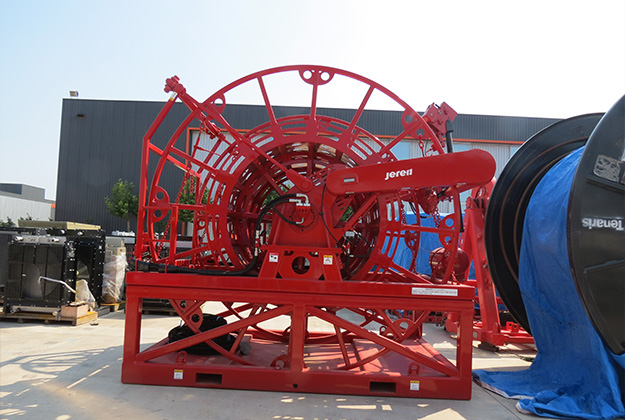

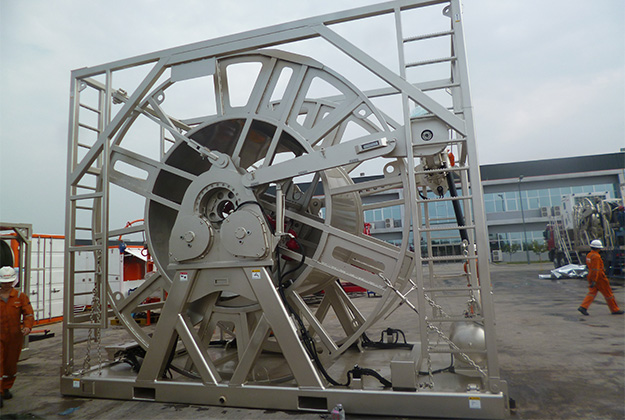

Coiled Tubing Reel

Features

  • High torque gearbox equipped for spooling of tubings of large diameter;
  • Optional for integral and quick-in-drum design for customer to change reel and drum quickly and conveniently;
  • Levelwind quick change device allows convenient change of tubings of different size;
  • Applicable to electric cable, concentric coiled tubing and umbilical cable for use with coiled tubing unit in well logging.

Specifications

Description Coiled Tubing Reel
Model LGGT-A-B-C
A: Outside Flange Diameter (inch)
B: Core Diameter(inch)
C: Inside Flange to Flange Width (inch)
Applicable Tubing Dia. 1”, 1.25”, 1.5”, 1.75”, 2”, 2.375”, 2.625”, 2.875”, 3”, 3.5”
Reel Capacity Customizable
Working Pressure 69 MPa/ 103.5 MPa
Drive Mode Chain drive/ Central drive/Gear drive (quick-in-drum)
Application Pumping/Logging /Umbilical cable/ Concentric coiled tubing
