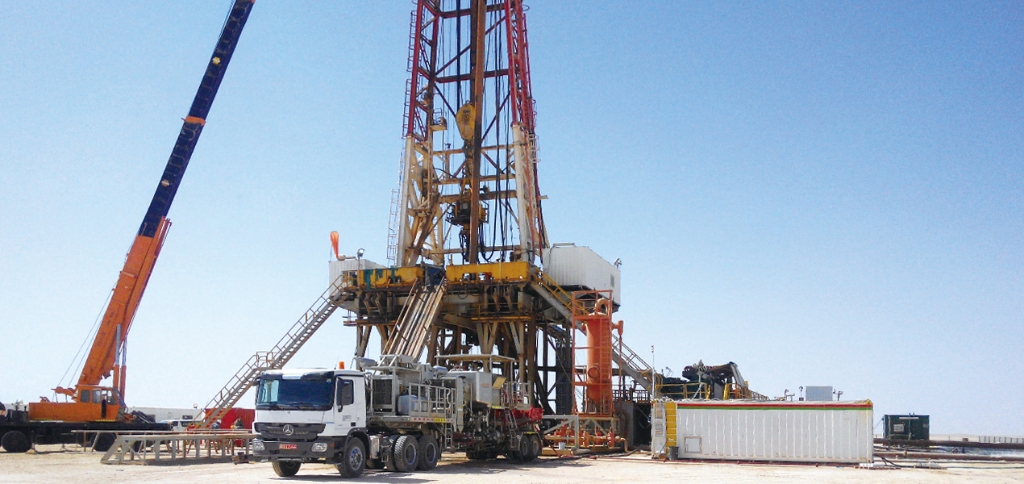

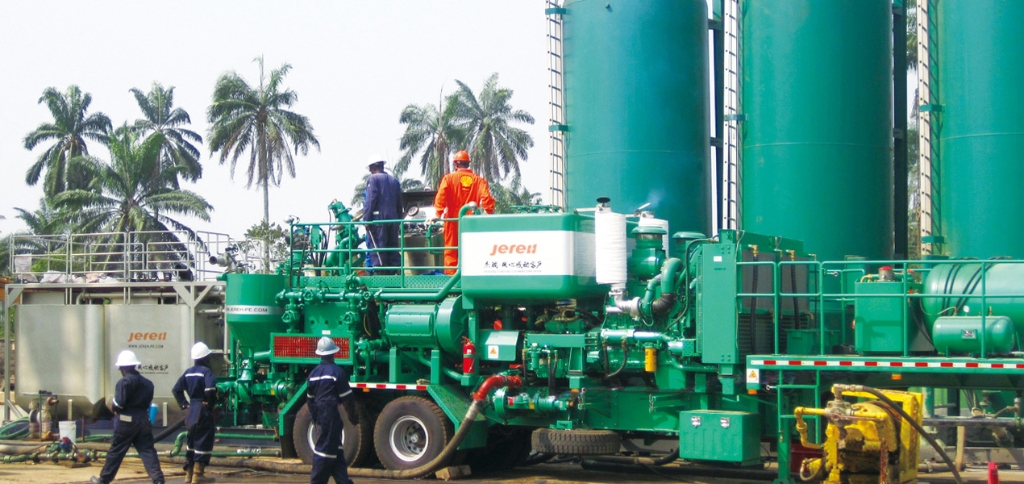

Twin Pump Cementing Unit

Features

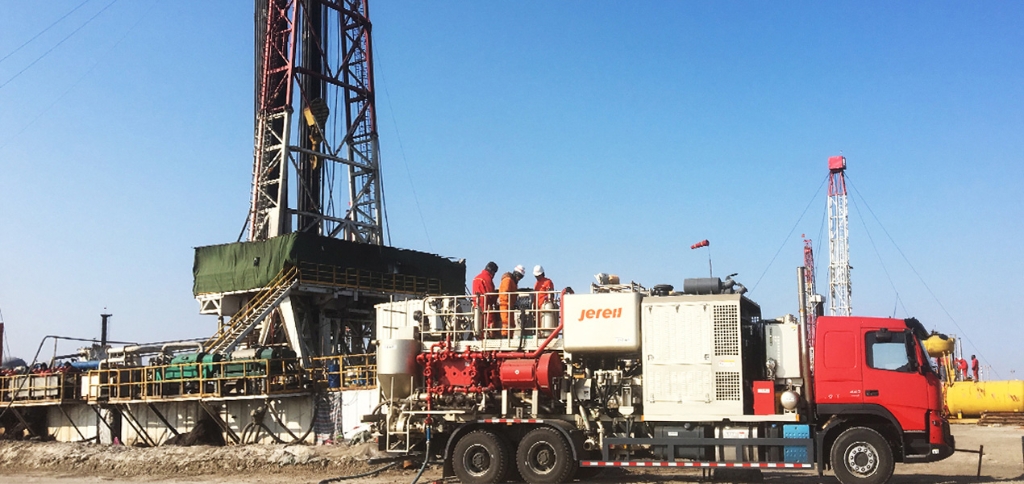

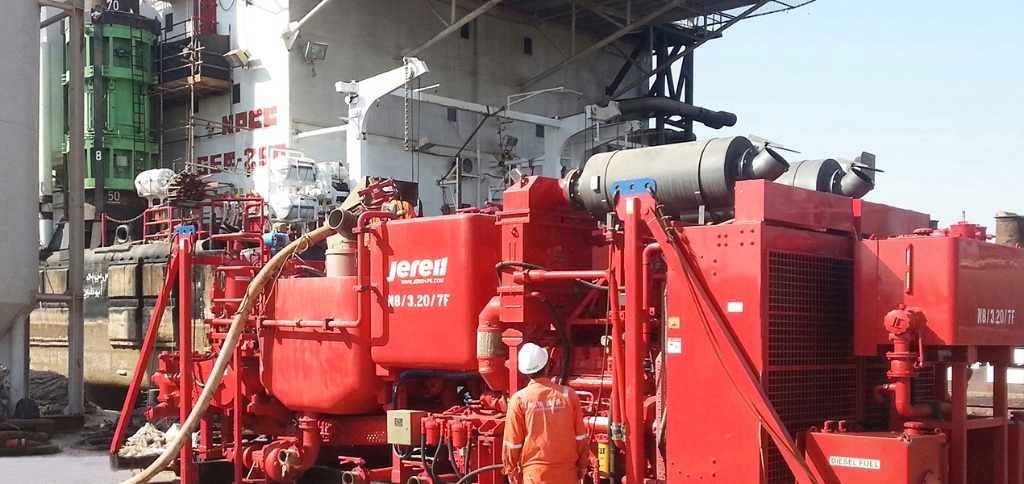

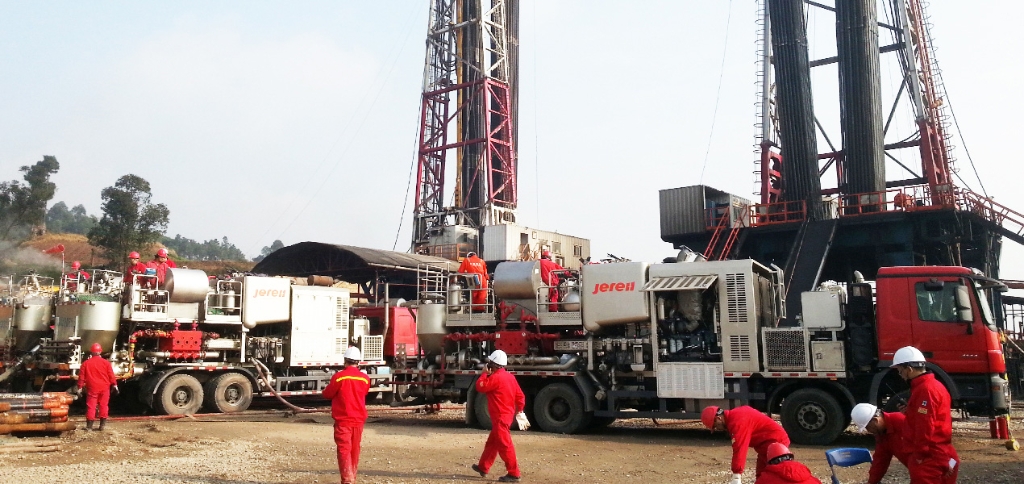

  • All-weather cementing unit is applicable to various operation conditions such as onshore, offshore, desert, and arctic or extremely hot conditions;

  • 12” HMI displays operation data and curves, convenient for operator to monitor the operation condition;

  • The system allows the operator to modify the operation interfaces and function keys according to their habits. It only requires simple data input to control the operation and optimizes the density algorism to guarantee accurate and stable control;

  • Intelligent bivariate mixing system (AMS) controls the density accurately, leading the slurry mixing technology of the industry. Seamless switching between MANUAL and AUTO control modes is available;

  • Professional data acquisition system records, analyzes and stores the operation data in real time;

  • The twin pump cementing unit achieves the mutual standby of manifolds and unit functions, enhancing the operation safety and reliability;

  • Professional ergonomic design and protection system enable the comfort, safety and reliability of the unit, enhancing the customer satisfaction.

Specifications

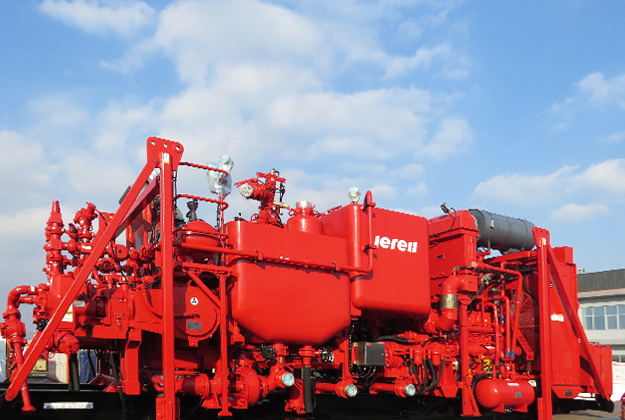

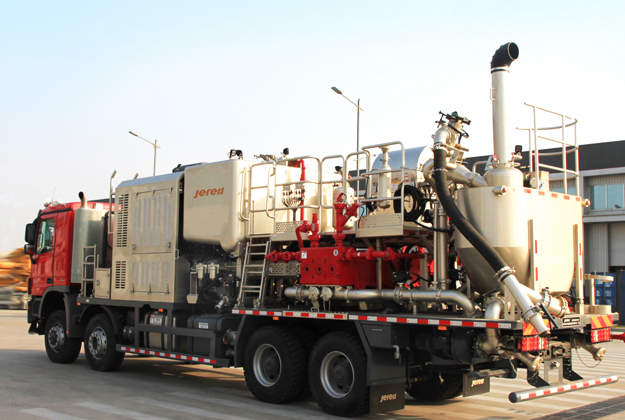

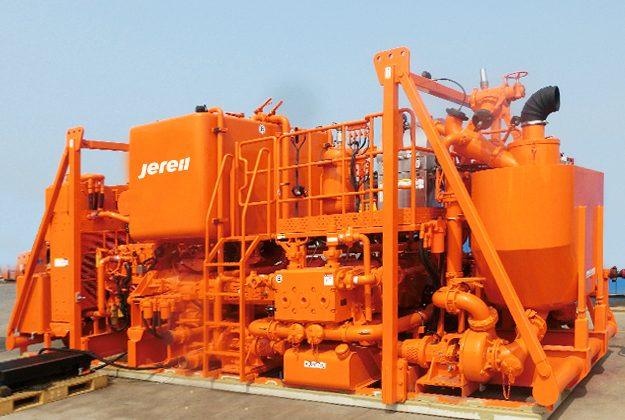

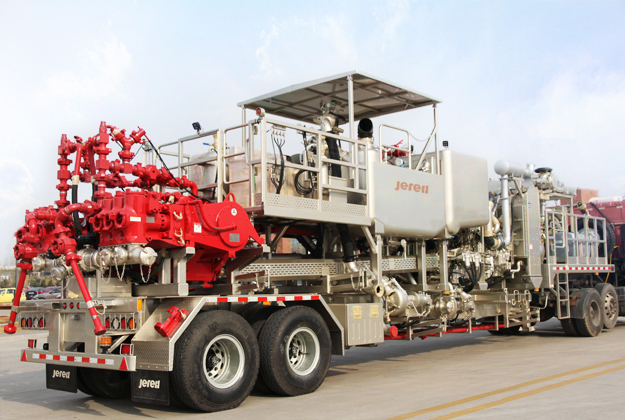

Carrier Truck / Trailer / Skid
Chassis BENZ / MAN / VOLVO
Engine DDC S60 / CAT / CUMMINS
Transmission ALLISON 4700 OFS
Plunger Pump JR600 / JR600S JR500W
Plunger Dia. 3” 3.5” 4” 4.5” 4” 4.5”
Max. Working Pressure

14,147ps

(97.6MPa)

10,394psi

(71.7MPa)

7,958psi

(54.9MPa)

6,288psi
14,238psi
11,250psi
(43.4MPa) (98.2MPa) (77.6MPa)
Max. Working Flowrate

251gp

(0.9m3/min)

342gp

(1.3m3/min)

447gpm

(1.7m3/min)

566gpm

(2.1m3/min)

319gpm

(1.2m3/min)

404gpm

(1.5m3/min)

Centrifugal Pump Mixing Water & Water Supply Pump: 4×3×13; Recirculating & Boosting Pump: 6×5×11
Displacement Tank 2×12bbl (2×2m3)
Slurry Mixing Tank 10bbl (1.6m3)
Slurry Density 8.3~22ppg (1~2.6g/cm3)
Max. Mixing Capacity 14.5bpm (2.3m3/min)
Slurry Mixing System AMS1.6, AMS2.5
