Single Pump Cementing Unit

Features

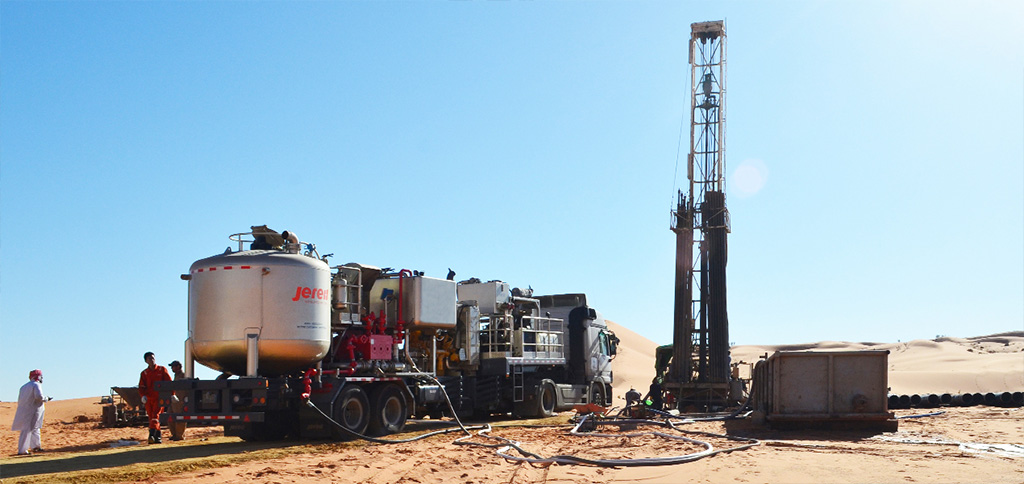

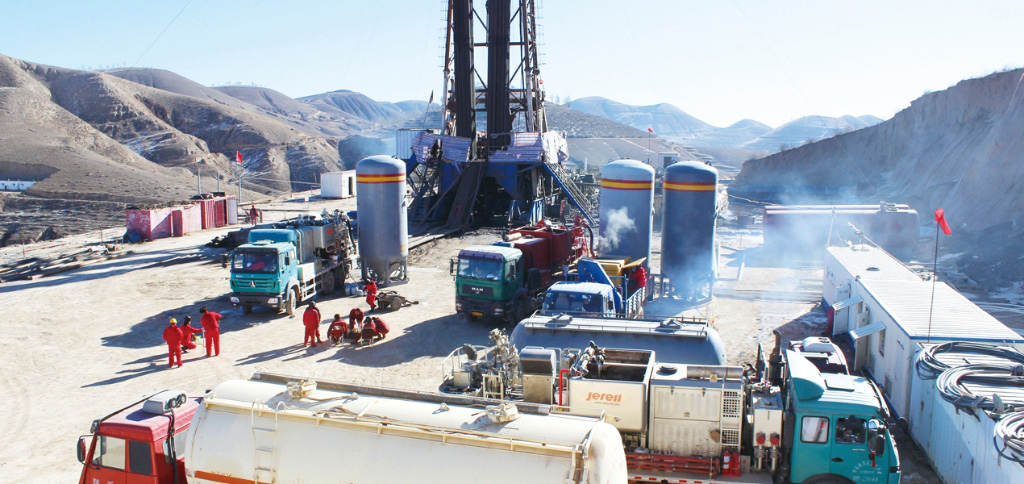

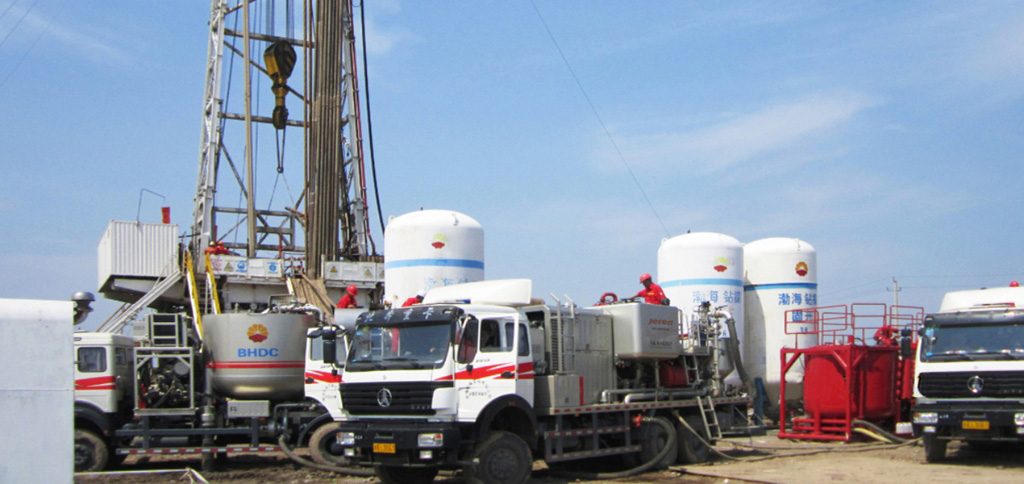

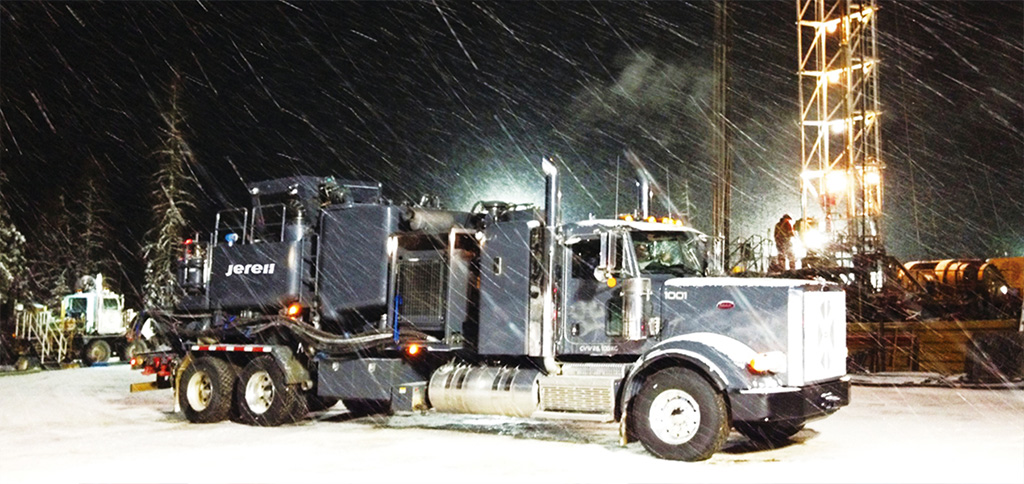

  • All-weather cementing unit is applicable to various operation conditions such as onshore, offshore, desert, and arctic or extremely hot conditions;
  • Bivariate automatic mixing system (AMS) controls the density accurately, leading the slurry mixing technology of the industry;
  • Seamless switching between MANUAL and AUTO control modes changes the operation habits of customers and improves working efficiency, bringing the customers new operation experience;
  • Professional data acquisition system records, analyzes and stores the operation data in real time;
  • Professional ergonomic design and protection system enable the comfort, safety and reliability of the unit, enhancing the customer satisfaction.

Specifications

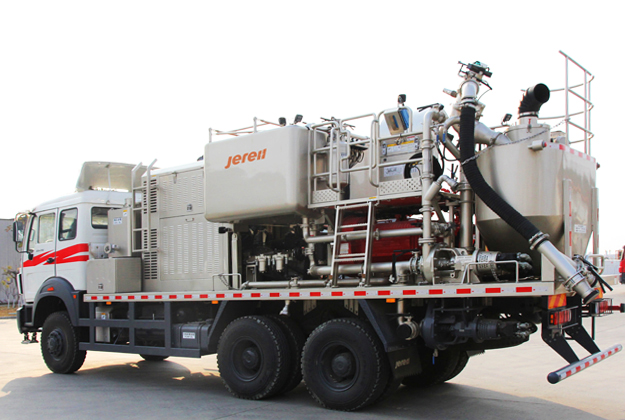

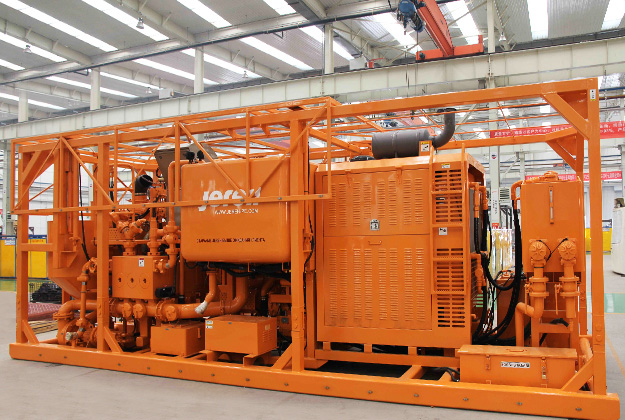

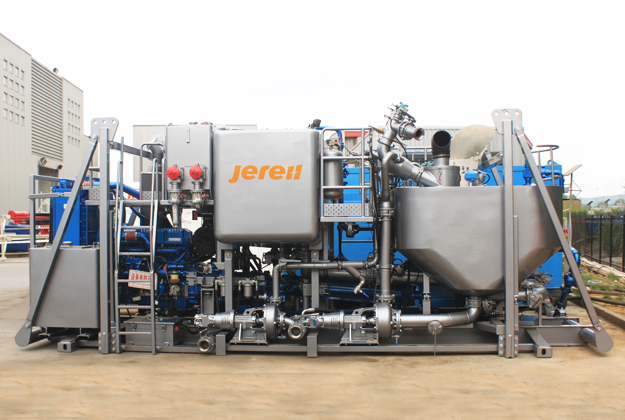

Carrier Truck / Trailer / Skid
Chassis BENZ / MAN / VOLVO / BEIBEN
Engine DDC S60 / CAT / CUMMINS
Transmission ALLISON 4700 OFS
Plunger Pump JR600 / JR600S JR500W
Plunger Dia. 3.5” 4” 4.5” 4” 4.5”
Max. Working Pressure 10394psi
(71.7MPa)
7958psi
(54.9MPa)
6288psi
(43.4MPa)
14238psi
(98.2MPa)
11250psi
(77.6MPa)
Max. Working Flowrate 342gpm
(1.3m3/min)
447gpm
(1.7m3/min)
566gpm
(2.1m3/min)
319gpm
(1.2m3/min)
404gpm
(1.5m3/min)
Centrifugal Pump Mixing Water & Water Supply Pump: 4×3×13; Recirculating & Boosting Pump: 6×5×11
Displacement Tank 2×12bbl (2×2m3)
Slurry Mixing Tank 10bbl (1.6m3)
Slurry Density 8.3~22ppg (1~2.6g/cm3)
Max. Mixing Capacity 14.5bpm (2.3m3/min)
Slurry Mixing System AMS1.6, AMS2.5
